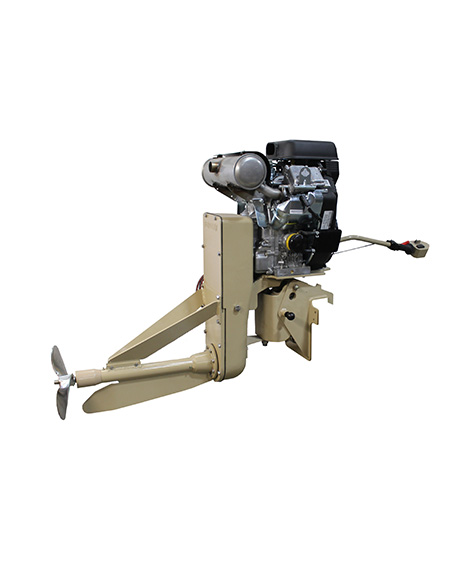

This motor is all about optimizing performance! Utilizing the Vanguard marine engine, it delivers awesome acceleration along with great top end speed. If you are looking for serious performance this is the motor for you!

When you are hunting with three or more people, decoys and a dog, the 40 HP Vanguard EFI is the motor of choice. This motor is all about optimizing performance! Utilizing the Vanguard marine engine, it delivers awesome acceleration along with great top end speed. If you are looking for serious performance this is the motor for you!

TRAILERING

• CNC Tilt and Trim Hydraulic Actuator to raise prop and shaft above trailer plane

40HP PERFORMANCE UPGRADES

• New strengthened block
• New high performance cam profile
• New forged aluminum con-rod with matching performance piston & ring pack
• New increased compression ratio
• New head design for better air and fuel flow
• New performance muffler
• New ECU calibration

VANGUARD EFI for MARINE FEATURES

• Weather resistant wire harness connections
• Idle air control
• Direct throttle
• Electric Fuel Injection
• 20/50 Amp alternator
• Stainless steel muffler
• Optional wire and fuel hose cover
• High RPM rev limiter
• Marine spec ECU calibration
• 3 Year Limited Warranty

DRIVE TRAIN

• Synchronous Belt Drive
• Electric Clutch
• Ground Balanced Electroless Plated Drive Shaft

FRAME

• Aircraft Grade Aluminum Frame and Housing
• Available in short and tall for 16″ to 20″ transoms

PROPELLER

• Unit comes with the exclusive 12 x 12 Performance Series X prop
• Stainless steel and built with cad/cam computer technology for precision accuracy
• Super weedless, heavy cupped

FINISH

• Flat finish marine powder coat (Olive Drab)
• All units come with zinc rich undercoat primer powder coat.

This motor is sold as “Short” for 16″ Transoms, or “Tall” for 20″ Transoms. Please select Tall or Short from dropdown menu.
